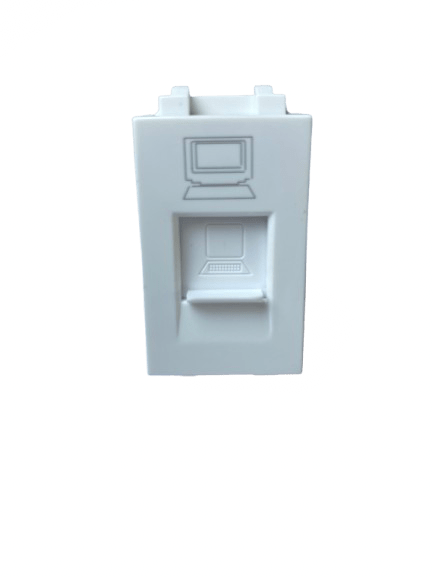

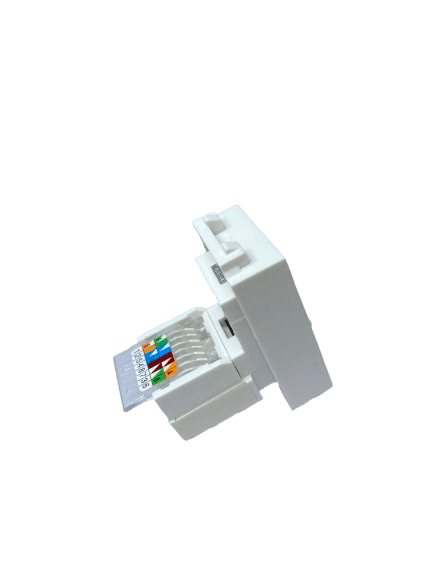

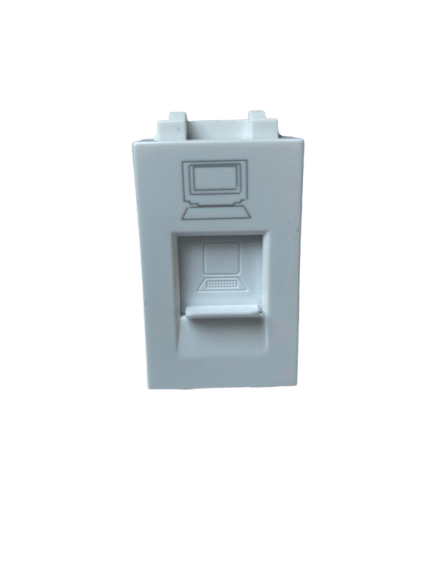

CAT6 Data Outlet MCS-0523A

Type:

• Category 6 Network Module
• Color: White

Electrical:

• Rated Voltage: 125V AC RMS
• Rated Current: 1.5AMP
• Contact Resistance: ≤20mΩ
• Insulation Resistance: ≥500MΩ, 100V DC
• Withstand Voltage: DC 1000V/AC 700V RMS 60Hz, 1min
• Transmission Performance: (1) ANSI/TIA 568.2-D CAT6 Prem.Link (2) ISO 11801 PL Class E 90m/20m

Environment:

• Temperature: -25℃ to 70℃
• Humidity: 10%~90%RH

Mechanical:

• Housing Material: PC
• PCB Material: FR-4
• Contact Material: Phosphor Bronze T=0.35mm, Gold Plating 6u”
• Insertion Force: ≤20N
• Insertion Life: ≥750 cycles
• Suitable Wire Gauge: 0.45mm-0.6mm
• Cable Outer Diameter: 5.0mm-7.5mm
• Can pass 24-hour salt spray test (5%NaCl solution)Tolerance not specified is in accordance with Grade C
