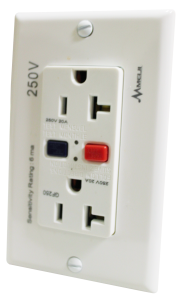

Ground Fault Circuit Interupter GFCIInstalling and Testing a GFCI Receptacle

CAUTION:

-To prevent sever shock and electrocution, always turn the power OFF at the service panel before working with wiring.

-Use the GFCI receptacle with copper or copper-clad wire. Do not use it with aluminum wire.

-Do not install this GFCI receptacle on a circuit that powers life-support equipment because if the GFCI trips it will shut down the equipment.

-For installation in wet locations, protect the GFCI receptacle with a weatherproof cover that will keep both the receptacle and any plugs dry.

-Must be installed in accordance with national and local electrical codes.



WHAT IS A GFCI?

-A GFCI receptacle is different from conventional receptacles. In the event of a ground fault, a GFCI will trip and quickly stop the flow of electricity to prevent serious injury.

-Definition of a ground fault: Instead of following its normal safe path, electricity passes through a person’s body to reach the ground. For example, a defective appliance can cause a ground fault.

-A GFCI receptacle does NOT protect against circuit overloads, short circuits, or shocks. For example,you can still be shocked if you touch bare wires while standing on a non-conducting surface, such as a wood floor.



SHOULD YOU INSTALL IT?

-Installing a GFCI receptacle can be more complicated than installing a conventional receptacle.

Make sure that you:

-Understand basic wiring principles and techniques.

-Can interpret wiring diagrams.

-Are prepared to take a few minutes to test your work, making sure that you have wired the GFCI receptacle correctly.



LINE vs. LOAD

A cable consists of two wires.

1. LINE CABLE:

Delivers power from the service panel (breaker panel or fuse box) to the GFCI. If there is only one cable entering the electrical box, it is the LINE cable. This should be connected to the GFCI’s LINE terminals only.

2. LOAD CABLE:

-Delivers power from the GFCI to another receptacle in the circuit. This cable should be connected to the GFCI’s LOAD terminals only. The LOAD terminals are under the yellow sticker. Do not remove the sticker at this time.



TURN THE POWER OFF

-Plug an electrical device, such as a lamp or radio, into the receptacle on which you are working. Turn the lamp or radio on. Then, go to the service panel. Find the breaker or fuse that protects the receptacle. Place the breaker in the OFF position or completely remove the fuse. The lamp or radio should turn OFF.

-Next, plug in and turn ON the lamp or radio at the receptacle’s other outlet to make sure the power is OFF at both outlets. If the power is not OFF, stop work and call an electrician to complete the installation.



IDENTIFY CABLES/WIRES

Important:

Do not install the GFCI receptacle in an electrical box containing (a) more than 4 wires (not including the grounding wires) or (b) cables with more than two wires (not including the grounding wire). Contact a qualified electrician if either (a) or (b) is true.

If you are replacing an old receptacle, pull it out of the electrical box without disconnecting the wires.

If you see one cable (2-3 wires), it is the LINE cable. The receptacle is probably in position C (see diagram to the right). Remove the receptacle and go to step 7A.

If you see two cables (4-6 wires), the receptacle is probably in position A or B (see diagram to the right). Follow steps a-e of the procedure to the right.

Procedure:

(a) Detach one cable’s white and hot wires from the receptacle and cap each one separately with a wire connector. make sure that they are from the same connector.

(b) Re-install the receptacle in the electrical box, attach the faceplate, then turn the power ON at the service panel.

(c) Determine if power is flowing to the receptacle. If so the capped wires are the LOAD wires. If not, the capped wires are the LINE wires.

(d) Turn the power OFF at the service panel, label the LINE and LOAD wires, then remove the receptacle.

(e) Go to step 7B.



CONNECT THE WIRES (choose A or B) …only after reading other side completely.

A: One cable (2 or 3 wires) entering the box

GFCI Front View

Connect the LINE cable to the LINE terminals:

-The white wire connects to the White terminal. (Silver)

-The black wire connects to the Hot terminal. (Brass)

Connect the grounding wire (only if there is a grounding wire):

-For a box with no grounding terminal (diagram not shown): Connect the LINE cable’s bare copper (or green) wire directly to the grounding terminal on the GFCI receptacle.

-For a box with a grounding terminal (diagrams are shown above): Connect a 6-inch bare copper (or green) 12 or 14 AWG wire to the grounding terminal on the GFCI. Also connect a similar wire to the grounding terminal on the box. Connect the end of these wires to the LINE cable’s bare copper (or green) wire using a wire connector. If these wires a re already in place, check the connections.

Complete the installation:

-Fold the wires into the box, keeping the grounding wire away from the White and Hot terminals. Screw the receptacle to the box and attach the receptacle.

-Go to Step 8.



OR



B: Two cables (4 or 6 wires) entering the box.

GFCI Back View

GFCI Back View

Connect the LINE cable wires to the LINE terminals:

-The white wire connects to the White terminal (Silver).

-The black wire connects to the Hot terminal (Brass).

Connect the LOAD cable wires to LOAD terminals:

-Remove the yellow sticker to reveal the LOAD terminals.

-The white wire connects to the White terminal (Silver).

-The black wire connects to the Hot terminal (Brass).

Connect the grounding wires as shown above (only if there is a grounding wire):

-Connect a 6-inch bare copper (or green) 12 or 14 AWG wire to the grounding terminal on the GFCI. If the box has a grounding terminal, also connect a similar wire to the grounding terminal on the box. Connect the ends of these wires to the LINE and LOAD cable’s bare copper (or green) wire using a wire connector. If these wires are already in place, check the connections.

Complete the installation:

-Fold the wires into the box, keeping the grounding wire away from the White and Hot terminals. Screw the receptacle to the box and attach the faceplate.

-Go to Step 8.



TEST YOUR WORK

Why perform this test?

-If you ‘miswired’ the GFCi it may not prevent personal injury or death due to a ground fault (electrical shock).

-If you mistakenly connect the LINE wires to the LOAD terminals, the GFCI will still operate like an ordinary receptacle, but it will not interrupt a ground fault.

Procedure:

(a) Turn the power ON at the service panel. Press the RESET button fully. Plug a lamp or radio into the GFCI (and leave it plugged-in) to verify that the power is ON. If there is no power, go to Troubleshooting.

(b) Press the blue TEST button in order to trip the device. This should stop the flow of electricity, making the radio or lamp shut OFF. Note that the red RESET button will pop-out. If the power stays ON, go to Troubleshooting. If the power goes OFF, you have installed the GFCI receptacle correctly. To restore power, press the RESET button.

(c) If you installed your GFCI using step 7B, plug a lamp or radio into surrounding receptacles to see which one(s), in addition to the GFCI, lost power when you pressed the TEST button. Do not plug life saving devices into any receptacles that lost power. Place a “GFCI Protected” sticker on every receptacle that lost power.

(d) Press the TEST button (then RESET button) every month to assure proper operation.



TROUBLESHOOTING:

Turn the power OFF and check the wire connections against the appropriate wiring diagrams in step 7A or 7B. Make sure that there are no loose wires or loose connections. Also, it is possible that you have reversed the LINE and LOAD connections. LINE/LOAD reversal will be indicated by power remaining ON at the GFCI after you press the GFCI’s TEST button. Reverse the LINE and LOAD connections if necessary. Start the test from the beginning of step 8 if you rewired any connections to the GFCI.
